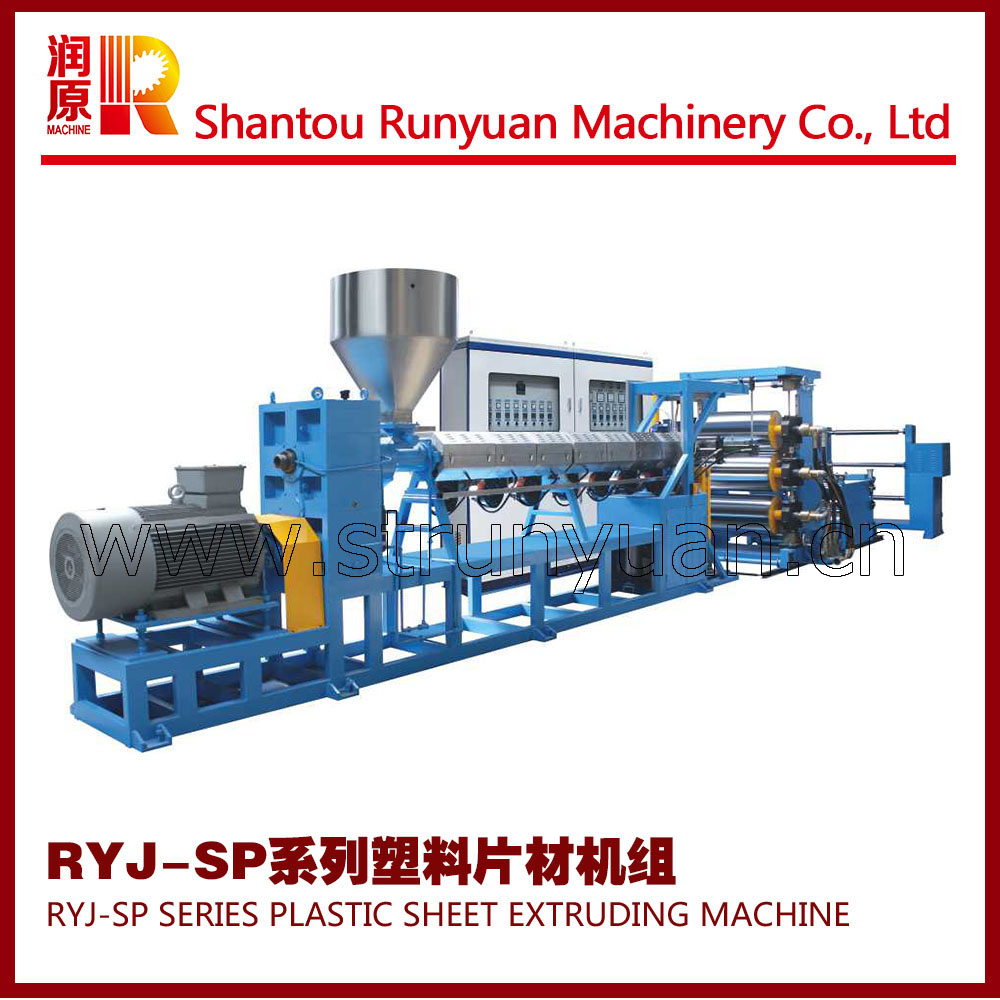

RYJ-SP Series Plastic Sheet Extruding Machine
RYJ-SP系列塑料片材擠出機
Parameter: 參數：
MODEL 型號 | RYJ-SP-900-105 | RYJ-SP-900-110 | RYJ-SP-900-120 |
Roller Length 輥筒長度 | 420*900mm | 420*900mm | |
Sheet Width 片材寬度 | ≤750mm | ≤750mm | ≤750mm |
Sheet Thickness 片材厚度 | 0.3-2.0mm | 0.3-2.0mm | 0.3-2.0mm |
Screw Diameter 螺桿直徑 | 105mm | 110mm | 120mm |
Screw Length-Diameter Ratio 螺桿長度-直徑比 | 1:33 | 1:34 | 1:35 |
Total Power 總功率 | 110kw | 120kw | 145kw |
Heating Power 加熱功率 | 45kw | 60kw | 70kw |
Max. Output *輸出 | 220kg/h | 250kg/h | 350kg/h |
Dimension 尺寸 | 12.5×1.8×2 (m) | 13×1.8×2 (m) | |
Total Weight 總重量 | 8T | 9T | 10T |
Structural characteristics 結構特性
●RYJ-SP Series Plastic Sheet Extruding Machine is developed by the market demand. It is mainly applied to produce PP, PE, PS, HIPS sheet etc.
RYJ-SP系列塑料片材擠出機是根據市場需求研制的，主要用于生產PP、PE、PS、HIPS等片材
●The screw of the extruding machine uses big ratio of length and diameter. It has good forming effect, even sheet thickness and same running speed.
擠出機的螺桿采用大長徑比，成形效果好，片材厚度均勻，運行速度一致
●This machine includes screw extruder, 3-roller calandar, traction rewinder.
本機包括螺桿擠出機、三輥壓延機、牽引復卷機
●Three rollers controlled by three motors separately.
三個輥筒分別由三個電機控制
●Bright surface of the pressing roller and even temperature of its surface to make sure that the sheet is clean and the thickness is equal.
壓輥表面光亮，表面溫度均勻，確保壓片清潔，厚度均勻

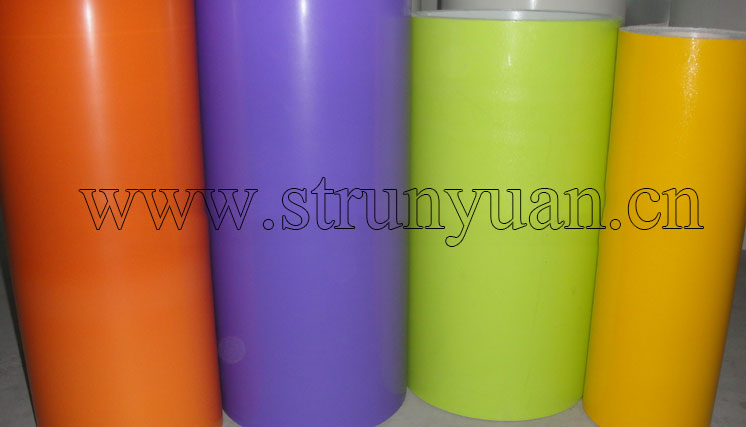

Samples Picture 樣品圖片

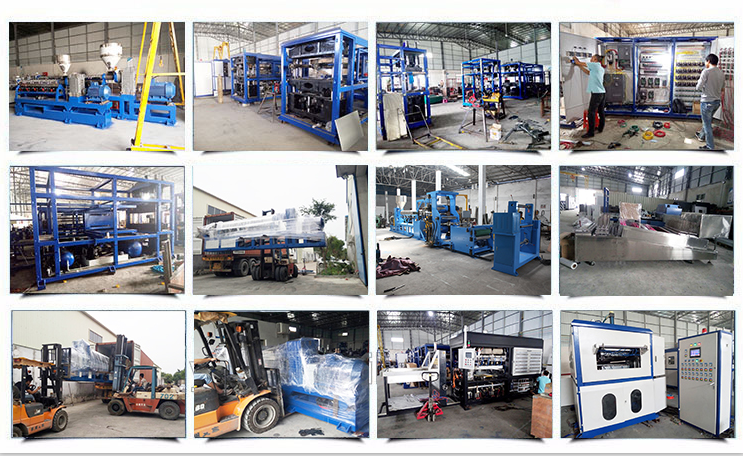

Factory Workshop Picture 工廠車間圖片
Loading Container Picture 裝柜圖片
